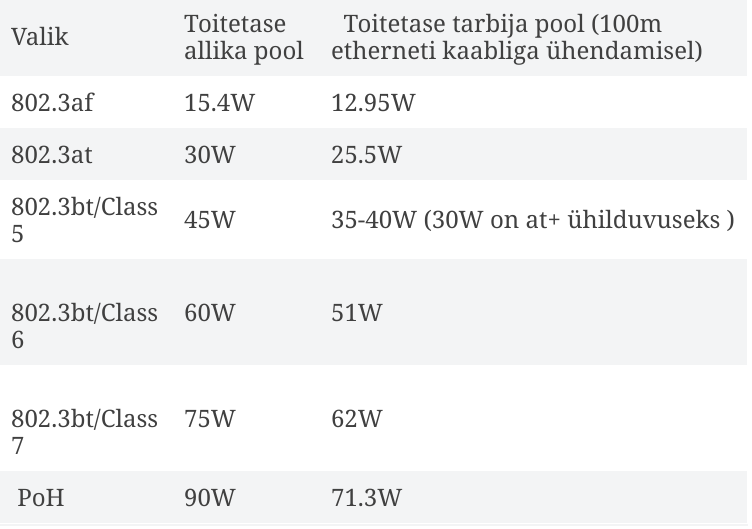

PoE can come in many modes that mean different levels of power. Ruckus AP-s switch off some functionalities (usually IoT and USB) if the level is not maximum needed. Here's a table to describe what power levels there are and then what are the maximum levels needed by Ruckus's indoor WiFi6 AP-s.
Recommended POE injectors 902-0162-EU00 (24W) 902-0180-EU00 (60W)
802.3at, PoE+
Full functionality, maximum power consumption: 18.71W
802.3af
2.4GHz radio 2x2 , 19dBm per chain
5GHz radio 2x2, 18dBm voo kohta
Disabled: 2nd Ethernet port, onboard IoT and USB
Maximum power consumption: 12.71W
Recommended POE injector: 902-0180-EU00 (60W)
802.3at, PoE+
Full functionality, maximum power consumption: 21.59W
802.3af
2.4GHz radio 2x2, 19dBm per chain
5GHz radio 2x4, 20dBm per chain
Disabled: 2nd Ethernet port, onboard IoT and USB
Maximum power consumption: 12.25W
Recommended POE injector 902-0180-EU00 (60W)
PoH/UPoE
Full functionality, maximum power consumption: 33.5W
802.3at PoE+
2.4GHz radio 4x4, 18dBm per chain
2.4GHz radio 4x4, 20dBm per chain
Disabled: 2nd Ethernet port and USB
Maximum power consumption: 25.5W
802.3af PoE
2.4GHz radio 1x4, 18dBm per chain
5GHz radio 1x4, 20dBm per chain
Disabled: 2nd Ethernet port and USB
Maximum power consumption: 12.95W
Recommended POE injector 902-0180-EU00 (60W)
PoH/UPoE
Full functionality, maximum power consumption: 31W
802.3at
2.4GHz radio 4x4, 20dBm per chain
5GHz radio 4x4, 22dBm per chain
Disabled: IoT
Maximum power consumption: 23.8W
802.3af PoE
Only Ethernet ports work.
PoH/UPoE
Full functionality, maximum power consumption: 31W
802.3at
2.4GHz radio 4x4, 20dBm per chain
5GHz radio 4x4, 22dBm per chain
Disabled: IoT
Maximum power consumption: 23.8W
802.3af PoE
Only Ethernet ports work.
Maximum power consumption: 12.4W
Recommended POE injector 902-0180-EU00 (60W).
802.3at, PoE+
Full functionality, maximum power consumption: 22.34W
802.3af
2.4GHz radio 2x2, 19dBm per chain
5GHz radio 2x2, 18dBm per chain
Disabled: 2nd Ethernet port, onboard IoT and USB
Maximum power consumption: 12.54W
Recommended POE injector 902-0180-EU00 (60W).
PoH/UPoE
Full functionality, maximum power consumption: 31W
802.3at Mode 0
2.4GHz radio 4x4, 20dBm per chain
5GHz radio 4x4, 22dBm per chain
Disabled: IoT
Maximum power consumption: 23.8W
802.3at Mode 1
2.4GHz radio 4x4, 20dBm per chain
5GHz radio 8x8, 20dBm per chain
Disabled: IoT, USB, 1Gbps Ethernet port
Maximum power consumption: 25.31W
Switching to Mode 1 can only be accomplished through rkscli command (as shown below). Once the switch is made to Mode 1, R850 will continue to operate in Mode 1 under 802.3at power across power-on resets. R850 will revert to Mode 0 only on a factory reset.
set at-mode 1
802.3af PoE
Only Ethernet ports are working.
Maximum power consumption: 12.4W
Ruckus ICX switches that have PoE ports are with following PoE budgets (summary power):
ICX 7150-24P 370W PoE budget (max 802.3at/PoE+)
ICX 7150-48P 370W PoE budget (max 802.3at/PoE+)
ICX 7150-48PF 740W PoE budget (max 802.3at/PoE+)
ICX 7150-48ZP 16x100/1000 Mbps/2.5 Gbps RJ-45 PoH 32x10/100/1000 Mbps RJ-45 PoE+ 1,480W PoE budget (with two power supplies)
ICX 7250-24P 370 W PoE budget (max 802.3at/PoE+)
ICX 7250-48P 740 W PoE budget (max 802.3at/PoE+)
All AP-s work with full functionality if powered by separate 12V power adapter:
