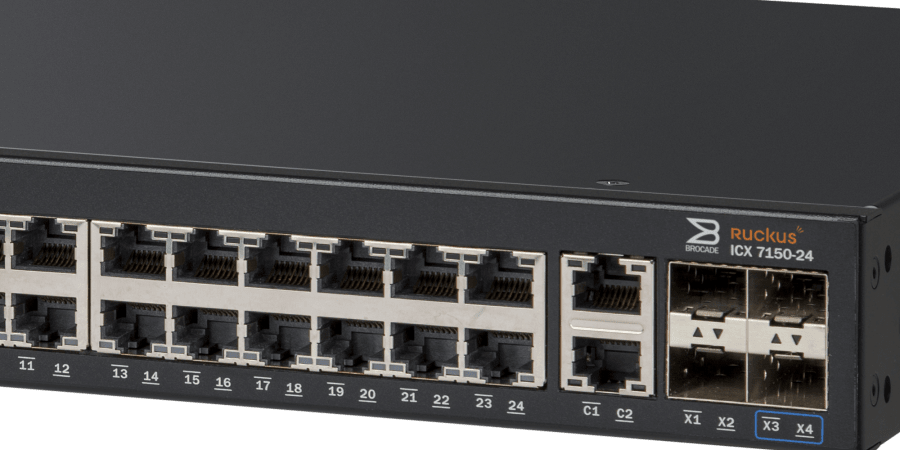

Configuring Ruckuse ICX 7150 LAG ports.
Configuring Ruckuse ICX 7150 LAG ports.
  sildid: -
  02/04/2020

Ruckus ICX switches support port aggregation, suitable configuration commands include:

ICX7150-24 Switch#configure terminal

ICX7150-24 Switch(config)#lag esimene dynamic id 1

ICX7150-24 Switch(config-lag-esimene)#ports ethernet 1/1/1 to 1/1/2

ICX7150-24 Switch(config-lag-esimene)#exit

ICX7150-24 Switch# write memory

show configuration:

lag esimene dynamic id 1
ports ethe 1/1/1 to 1/1/2

show interface brief:

Port Link State Dupl Speed Trunk Tag Pvid Pri MAC Name
1/1/1 Down None None None 1 No 1 0 xxx
1/1/2 Down None None None 1 No 1 0 xxx

....

lg1 Down None None None 1 No 1 0 xxx

When connecting two ICX switches via aggregated ports, it is recommended to set the lag port's speed of both devices to be the same, otherwise a loss of speed may occur.

If a vlan needs to be enabled on a connected port:

ICX7150-24 Switch(config)#vlan 111

ICX7150-24 Switch(config-vlan-111)#tagged lag 1

ICX7150-24 Switch(config)#vlan 112

ICX7150-24 Switch(config-vlan-112)#untagged lag 1

ICX7150-24 Switch(config-vlan-112)# exit


Autor: Tech Support
