Example use case of using L3 routing in Ruckus ICX switches.
Example use case of using L3 routing in Ruckus ICX switches.
  sildid: -
  13/04/2021

Ruckuse switchides saab kasutada nii switchi kui ruuteri tarkvara, firmware nimetustes on alguse lühendis vahe näha SPS ja SPR vastavalt.

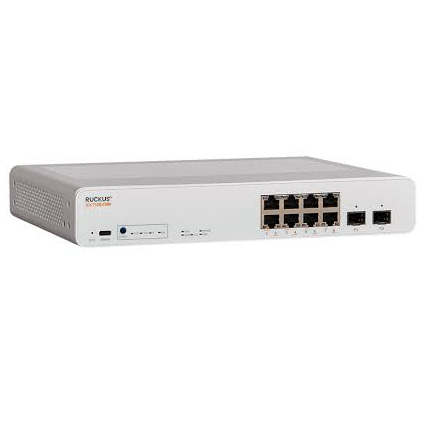

Ruckus ICX family has two separate firmwares, SPS for plain VLAN switch and SPR for routing with various routing protocols, like OSPF, RIP etc.

The simplest goal of a route/switch may be to divide a large network into two L2 separate networks and to create a DHCP service using a switch. This solution significantly increases reliability and also simplifies the diagnosis of errors.

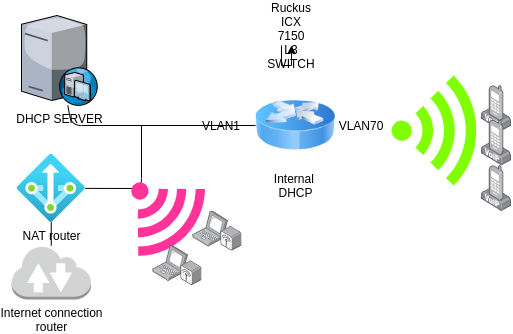

This example is from life itself, where part of the devices (VLAN70) had to work reliably and the rest of the network was unmanageable and consisted of random components (VLAN1). Int this case, only static routing is used.

ver 08.0.95bbT213

!

stack unit 1

module 1 icx7150-c12-poe-port-management-module

module 2 icx7150-2-copper-port-2g-module

module 3 icx7150-2-sfp-plus-port-20g-module

stack-port 1/3/1

global-stp

vlan 1 name DEFAULT-VLAN by port

router-interface ve 2

spanning-tree

!

vlan 70 by port

tagged ethe 1/1/1 to 1/1/9

router-interface ve 1

aaa authentication web-server default local

aaa authentication login default local

enable aaa console

ip dhcp-client disable

ip dhcp-server enable

!

ip dhcp-server pool pool70

lease 0 0 10

network 10.10.10.0 255.255.255.0

option 3 ip 10.10.10.1

deploy

ip default-network 192.168.107.0/24

interface ve 1

ip address 10.10.10.1 255.255.255.0

interface ve 2

ip address 192.168.107.19 255.255.255.0

ip route 0.0.0.0/0 192.168.107.1

no telnet server

username super password .....

manager registrar

!

manager port-list 987

interface ethernet 1/1/1

inline power power-limit 9000
