New Mini-Multigig Ruckus ICX switches
New Mini-Multigig Ruckus ICX switches
  sildid:
  08/04/2020

Ruckus has three new 7150-series ICX switches, which are very suitable for building smaller networks or as the last link in a larger network - an access switch.

ICX7150-C08P

The ICX7150-C08P is the smallest ICX switch, with a total of 10 ports, 8 of which are downlink ports with speeds of up to 1000 Mbs and PoE + capability. In addition, there are two uplink ports, one 100/1000 Mbs RJ45 and the other 1Gbs SFP. This is the only switch in the ICX family that does not have stacking capability. The device is silent and low power consumption, suitable for places where there is no separate cabinet for communication devices. The switches are rack-mountable and have a built-in power supply.

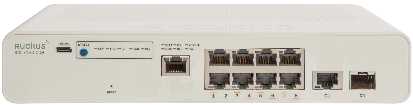

Ruckus ICX7150-C08P

ICX7150-C10ZP

The ICX7150-C10ZP is more capable, with more and faster ports. The device supports up to 10G connections and the 4 sockets comply with the PoE 802.3bt standard, which means that up to 90W of power can be supplied to the devices with an ethernet cable. The remaining 6 RJ45 sockets are PoE + standard.

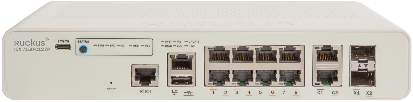

Ruckus ICX7150-C10ZP

This switch is very suitable for installing Ruckus' new R730 APs due to fast 2.5G ports and bt standard PoE sockets. In order for the R730 AP to reach its full potential, a 1G connection is no longer enough, as the WiFi 6 generation allows higher speeds between the devices and the AP. The ICX7150-C10ZP is a very suitable choice here.

The total power of the 802.3bt standard is 90W, which allows, in addition to the APs, to power, for example, lighting fixtures and screens or billboards. Thanks to this, it is not necessary to carry 220V electrical wires, both data and current pass through the cat5, cat5e or cat6 cable, and electrical installation with all the troublesome paperwork may not be done!

All switches are rack-mountable and have a built-in power supply.

ICX7150-24F


The ICX7150-24F is a 1U switch with 24 1G SFP sockets to bring the optics as close to the consumer as possible. Uplink have 4 SFP / SFP + ports.


Ruckus ICX7150-24F

Specifications:

ICX7150-C08P ICX7150-C10ZPICX7150-24F
Ports
- 8 x 10/100/1000 PoE+
- 1 x 100/1000
- 1 x SFP
- OOB management
- USB console

Ports
- 6 x 10/100/1000 PoE+
- 2 x 1/2.5G 802.3bt
- 2 x 1/2.5/5/10G 802.3bt

- 2 x SFP/SFP+
- OOB management
- USB + Serial console
Ports
- 24 x 100/1000 SFP
- 2 x 100/1000
- 4 x SFP/SFP+
- OOB management
- USB + Serial console

PSU – External
PoE budget 62W
L2 only
Stacking – No
SZ – Yes
Cloud - No
PSU – Internal
PoE budget 240W
L2 and L3
Stacking – Yes
SZ – Yes
Cloud - Yes
PSU – Internal
L2 and L3
Stacking – Yes
Cloud - Yes


The new ICX-7150 switches are available from August 1, 2019.


Autor: Urmas Reikop
